Customize 630Kw Francis Turbine Generator Stable In Operation 48-152m Design Head

Product Categories
Chengdu Forster Technology Co., Ltd.
Contact Now

Customize 630Kw Francis Turbine Generator Stable In Operation 48-152m Design Head

  • 1
  • 2

Brand Name : Forster

Model Number : HL240-WJ-50

Certification : CE/TUV/ISO9001

Place of Origin : Sichuan, China (Mainland)

MOQ : 1 Set/Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Month

Delivery Time : 180days

Packaging Details : wood box

Governor : Microcomputer Governor

Control system : Automation Control System

Valv : Gate valve

Voltage : 380v,400v,10KV,20kv,35KV

Design head : 48-152m

Design flow : 1.05-6.72m3/s

Pipe diameter : DN500-1250mm

Generator : Brushless excitation

Processing method : CNC machining / constant temperature annealing

Contact Now

China Factory Customize 630Kw Francis Water Turbine Generator For Hydro Power Plant

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features :

The Francis turbine is compact and efficient, and can adapt to a wide range of water heads. It is one of the most widely used turbine types in the world. When water flows through such a turbine wheel, it enters in a radial direction and flows out axially, so it is also called a radial axial flow turbine.
It is suitable for water heads ranging from 20 meters up to 700 meters. It is simple in structure, stable in operation and high in efficiency, but it is generally used in the middle head range (50 meters to 400 meters). Single machine output from tens of kilowatts to hundreds of thousands of kilowatts. At present, the maximum output of such turbines has exceeded 700,000 kilowatts. It is one of the most widely used turbines.

Product parameters:

HL-WJ-Francis tubine generator unit Generator Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
HLJS01/
-WJ-60		 48 1.05 750 440 89 SFW400-8 DST-3000 Or YT3000 Z945T-10Dg500
56 1.1 537 89.5 SFW500- 8
65 1.25 710 89.5 SFW630-6
HLJS01/
-WJ-60A		 75 1.37 1000 897 89 SFW800-6 DST-3000 Or YT3000 Z945H-16Dg600
87 1.41 1071 SFW1000-6
102 1.52 1354 SFW1250-6
HLJS01/
-WJ-71		 62 1.4 750 690 89 SFW630-8 YT-6000 Z945T-10Dg500
70 1.54 885 89.5 SFW800-8
81 1.66 1000 1095 89.5 SFW1000-8 YWT-10000 Z945H-16Dg600
96 1.81 1374 89 SFW1250-8
112 1.95 1750 89 SFW1600-6
127 2.1 2174 89.5 SFW2000-6
HLJS01/
-WJ-84		 88 2.42 750 2181 89 SFW2000-8 YWT10000 Z945H-16Dg800
102 2.68 2761 SFW2500-8
118 2.92 1000 3491 SFW3200-8 TWT18000 Z945H-25Dg800
140 3.09 4370 SFW4000-6
162 3.38 5313 SFW5000-6
HLJS01/
-WJ-100		 92 3.63 600 2915 91 SFW2500-10 YWT-10000 PDF16(25)-WYDg1000
108 3.84 3642 89.5 SFW3200-10
128 4.17 750 4530 89.8 SF4000-8 YWT-18000
142 4.51 5474 90.8 SF5000-8
166 5.6 6810 90 SF6300-8
HLJS01/
-WJ-120		 89 5.17 500 4342 90 SF4000-12 YWT-18000 PDF16(25)-WYDg1250
115 5.62 5296 SF5000-12
132 6.21 600 6658 SF6300-10 YWT-30000
152 6.72 8477 SF8000-10

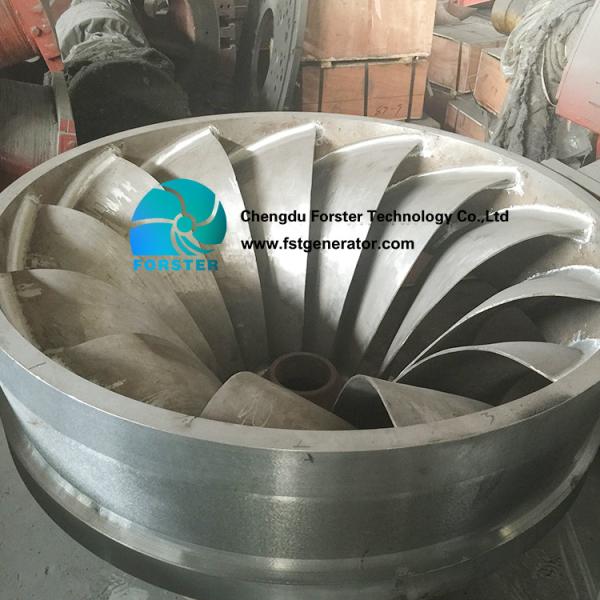

Product pictuers:

Customize 630Kw Francis Turbine Generator Stable In Operation 48-152m Design HeadCustomize 630Kw Francis Turbine Generator Stable In Operation 48-152m Design HeadCustomize 630Kw Francis Turbine Generator Stable In Operation 48-152m Design Head

Installation design drawings:

Customize 630Kw Francis Turbine Generator Stable In Operation 48-152m Design Head

Company Information:

Our Workshop:

Advantages:

Packaging & Shipping:

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website:www.fstgenerator.com
